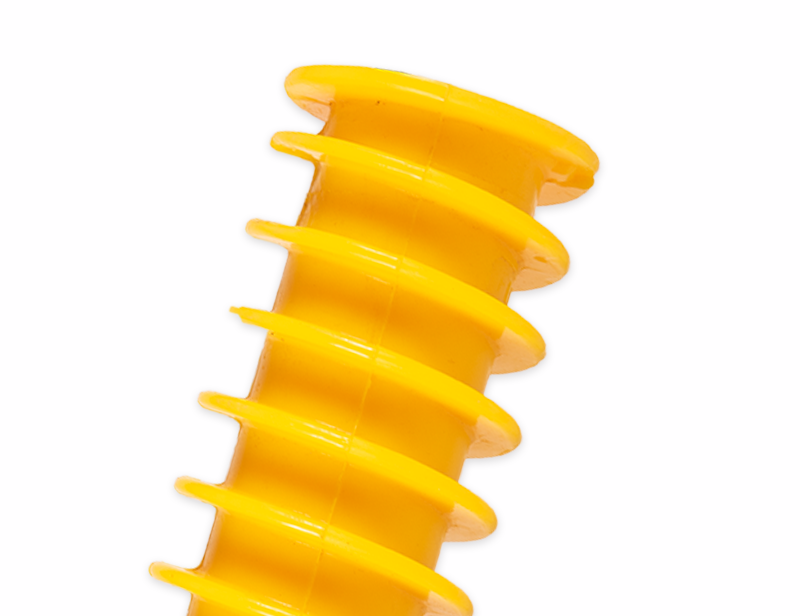

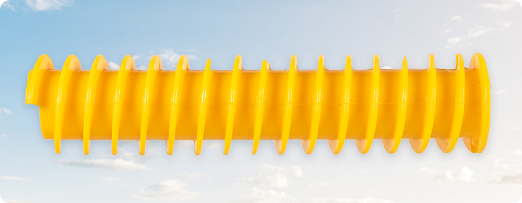

FLTLE PU-spiral coil – L/H – 400×62/90 mm – B35 – interlinckable

SKU: 32040

  • To fit:
  • Wear resistant with high impact elasticity
  • High quality poliurethane
  • Durable and crop friendly finished  coil
  • Working length is 400 mm with a total length 406,25 mm
  • square drive 35×35

More information

+31 (0)58 257 2390

Do you have a question, or you can´t figure it out? We are here for you! Ask your question via WhatsApp Or send an e-mail

FLTLE PU-spiral coil – L/H – 400×62/90 mm – B35 – interlinckable

SKU: 32040 Category:

53,67

  • Wear resistant with high impact elasticity
  • High quality poliurethane
  • Durable and crop friendly finished  coil
  • Working length is 400 mm with a total length 406,25 mm
  • square drive 35×35

Article in stock. Ordered today before 12:00, delivered tomorrow.

Choose the quantity

pcs
Price per piece excl.VAT 53,67
Price per piece incl. VAT 64,94
Safe and fast checkout.

Product information

Interested in buying PU spiral coils? This coil is made of high-quality and durable polyurethane and is suitable for cleaning systems such as receiving hoppers.

The spiral coils are used in various applications, e.g. cleaning axles, sorting systems and transfer rollers. The rollers are also used in disinfection machines or pre-sorting machines.

The standard diameter of the polyurethane spiral coils is 90 mm. There is no steel core inside the coils. The square drive is 35x35mm or 40x40mm and the outside diameter is 90mm.

We supply a variant where the segments can be interlocked, and also have a variant available with flat sides on both ends.

The PU spiral rollers are made in a hardness around 65-70 Shore. Almost all producers of receiving hoppers and sorting units use this hardness.

The soft, wear-resistant Polyurethane (PU) spiral rollers achieve the most crop friendly and effective separation or cleaning. In addition, pinched stones and rolled up foliage are avoided.

The PU spiral rollers are very crop friendly, reliable and have a long service life.

Ferucom has been a specialist of vulcanized rubber and polyurethane products for many years. Are you looking for a different format or other agricultural and / or industrial product? Our range is very extensive, feel free to choose one of the other options or contact us.

Specifications

Variety

spiral

Rotational Direction

L/H anticlockwise

Length (mm)

400

Asgat (mm)

35×35

Core diameter (mm)

62

Outer diameter (mm)

90

Material

PU – polyurethane
